Deliver Safe and Effective BCPAP Therapy

Designed for Easy Set Up

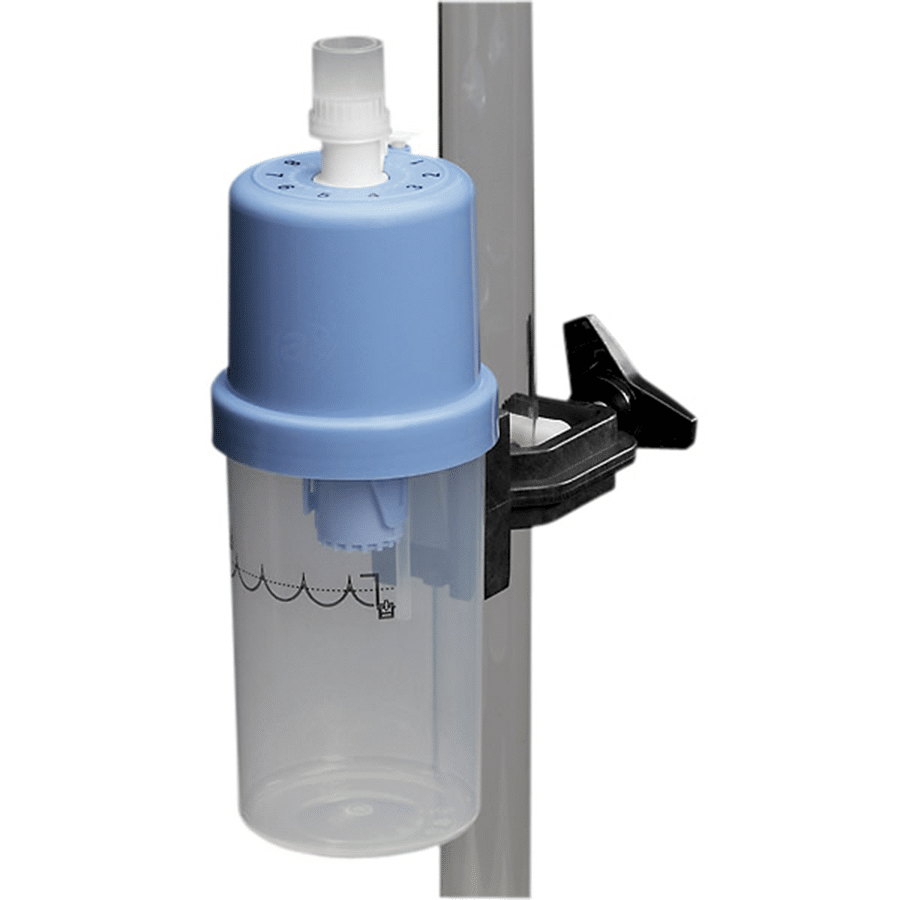

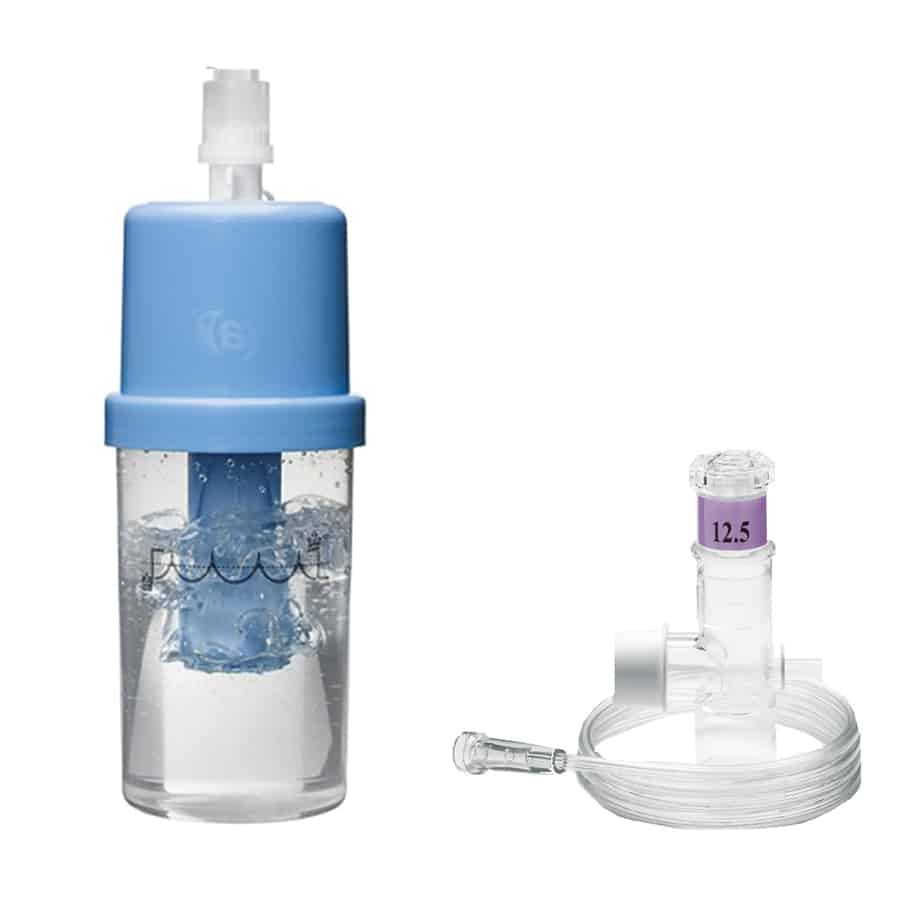

The Babi.Plus BCPAP Kit by Respiralogics integrates the patented Babi.Plus Bubble PAP Valve and Babi.Plus Pressure Relief Manifold in a single easy-to-assemble package, offering a convenient method for delivering continuous PAP to infants weighing less than 10 kg. The Kit helps alleviate the cumbersome and time-consuming tasks associated with bubble devices.

The Bubble PAP Valve is adjustable from 1 to 10 cm H2O, using gas flows from 1 to 12 liters per minute for precise pressure delivery. The Pressure Relief Manifold with gas supply tube and capped oxygen sensor port is designed to prevent breathing circuit pressure from exceeding the preset pressure limit.

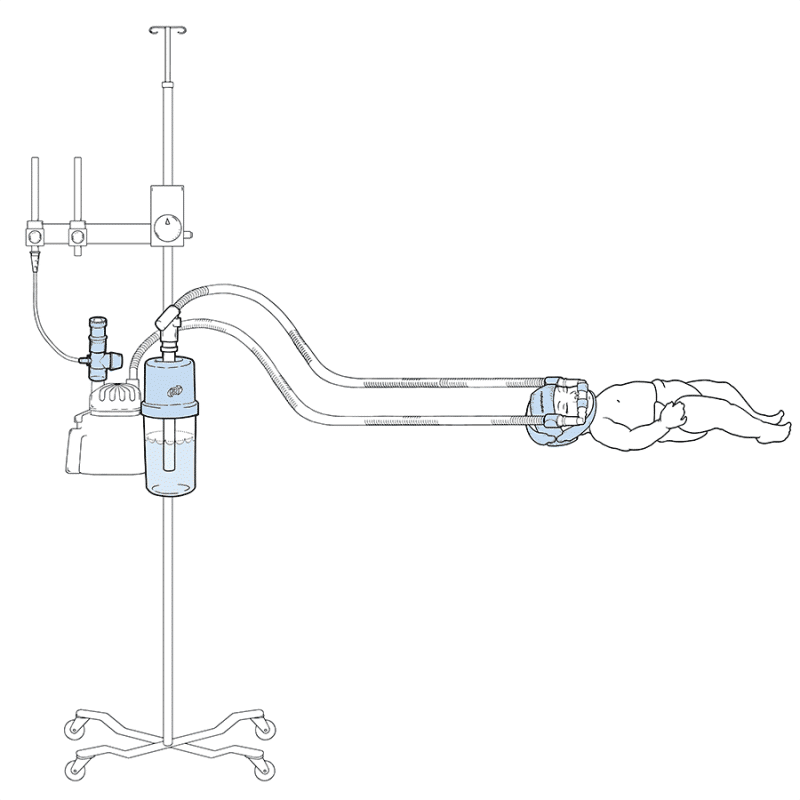

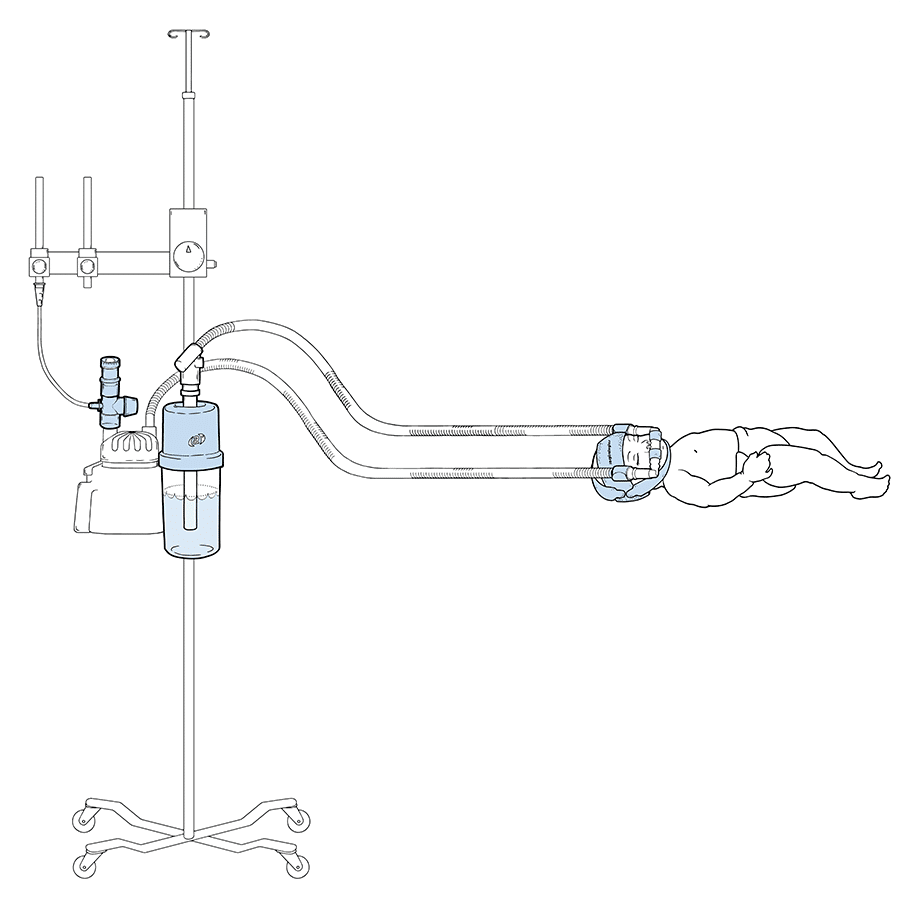

The Babi.Plus BCPAP Kit utilizes universal connections that attach to standard humidifiers, delivery circuits, Babi.Plus Cannula Kits, complementary Baby products and other commercially available nasal interfaces.

Babi.Plus BCPAP Kit At-A-Glance

• Complete kit ready for nCPAP delivery
• Clearly marked pressure control settings for easy and secure nCPAP adjustments
• 360° swivel inlet connector accepts standard 15 mm OD by 22 mm ID circuit fittings
• Monitor and adjust fluid level without interrupting BCPAP delivery
• Pressure Relief Manifold connects directly to gas supply, humidifier and oxygen analyzer sensor
• Closed system minimizes spillage and atmospheric contamination of H2O
• Constructed of phthalate-free, latex-free, hypoallergenic material
• Single patient use

Discover companion products to complement the BCPAP Kit, such as the Babi.Plus nCPAP Kit. Click Here.
